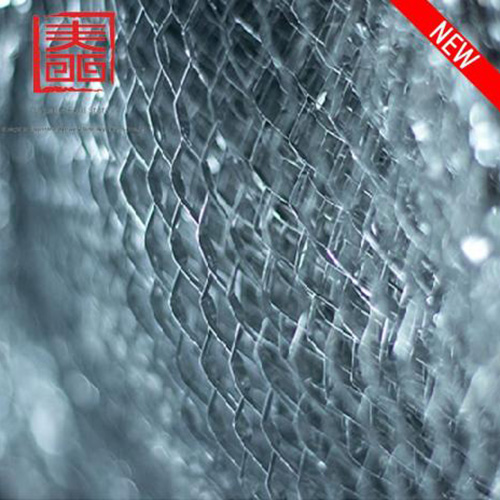

Barrier Explosion -Proof Material

Tank containers that effectively prevent flammable and explosive liquid and gaseous hazardous chemicals (including gasoline,diesel,liquefied petroleum gas,etc.) from exploding in the event of an open flame, static sparks, welding, shooting, collision, mishandling ,etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Explosion-proof Feather

1. Tank containers that effectively prevent flammable and explosive liquid and gaseous hazardous chemicals (including gasoline,diesel,liquefied petroleum gas,etc.)from exploding in the event of an open flame,static sparks,welding,shooting,collision,mishandling,etc.

2. Inhibiting the evaporation of oil and gas in the tank container,reduce pollution to the atmosphere, environmental protection and energy conservation.

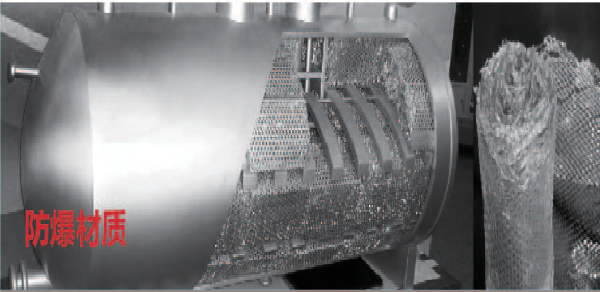

3. When the tank container filled with the explosion-proof material is suddenly burned,the flame height is reduced by about 30 times,which is good for fire fighting.

4. It greatly reduces the overturning accident caused by surge in the transportation process of oil tanker truck,and reduces the sloshing energy of liquid medium in container by about 80%.

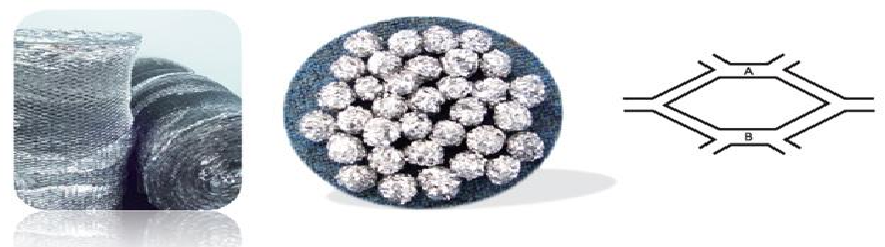

5. The barrier explosion-proof material developed by the company has high structural strength and strong anti-compression,and has little influence on the effective volume occupied by the container.The effective volume of the container only accounts for:mesh body ≤0.8%,spherical body ≤1.2%(filling density is: 25-35Kg/m3).

6. The barrier explosion-proof materials do not deform,collapse or contaminate the medium in the container.

7. The elongation of the barrier explosion-proof materials is 1.0%-3.0%,which is not easy to break and break,and can effectively prevent the blockage of pumps,meters,valves and various oil circuits.

Barrier explosion -Proof material (4)

Product specification

Note:

1.A 20ft cabinet is loaded with about 36 cubic meters of explosion-proof materials. It weighs about 900KG.
2. The geometric structure size is type IV
3. The material is aluminum alloy. The material thickness meets safety requirements;
4. The material grid size is uniform. The unevenness is less than or equal to 25%. The width of the undeveloped edge is less than or equal to 10mm. No more than 5 grid damages per square meter are allowed. The area of each damage is less than or equal to 60mm×50mm. The unevenness of the finished product end surface is less than or equal to 60mm;
5. The filling density of the material in the storage tank is 25kg/m³-35 kg/m³;
6. After the material is filled, the replacement rate is less than or equal to 1% of the original tank volume;
7.★The explosion boost value of the barrier explosion-proof technology device is less than or equal to 0.14MPa;

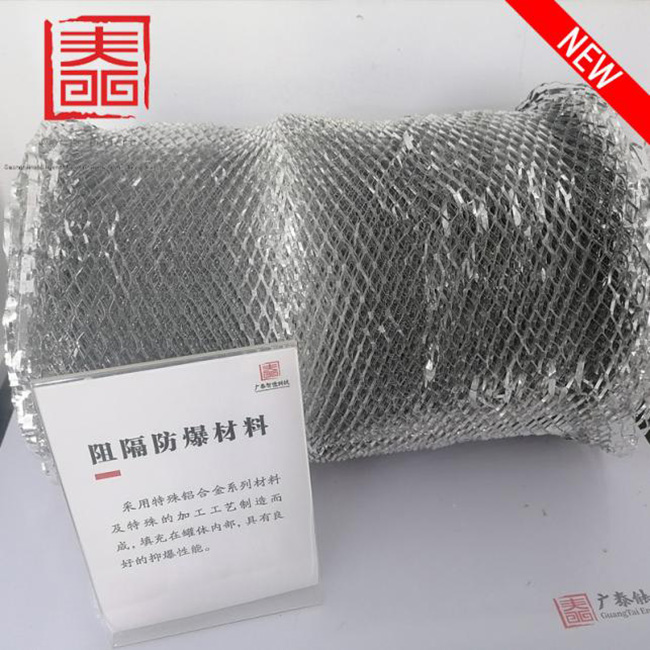

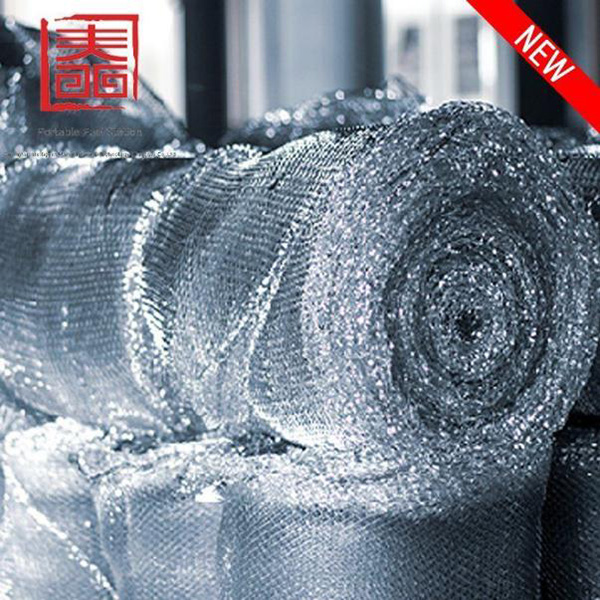

8.each roll weight 1.53kg,Diameter 480mm height 400mm thickness 0.052mm (Weight, diameter, length can be changed according to your requirements)

Material Applicable Field

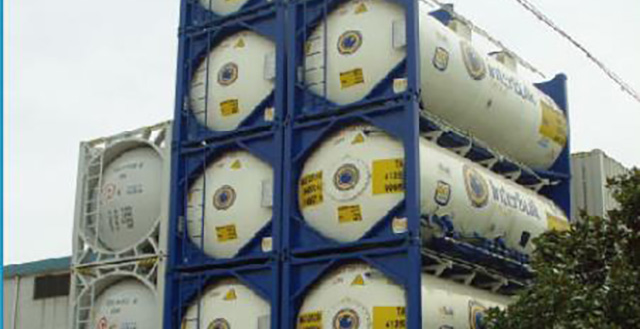

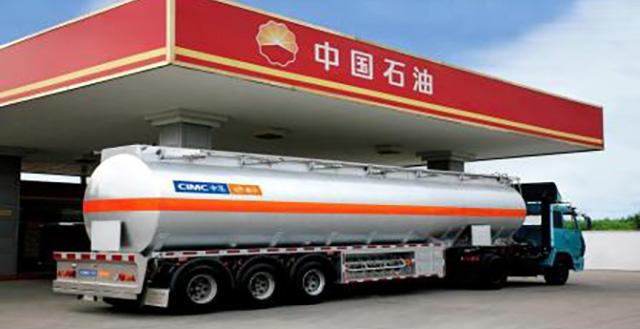

This technology is widely used in the storage and transportation containers and facilities of inflammable and explosive gaseous and liquid dangerous chemicals, such as water, land and air transportation, etc. It is suitable for automobile refueling stations, oil (gas) tankers, civil oil (gas) tanks, military oil depots (tanks), related inflammable & explosive gaseous and liquid dangerous chemicals tanks or containers, such as gasoline, diesel oil and coal. Oil, methanol, ethanol,ethyl acetate, xylene, propylene oxide , etc.

Barrier explosion -Proof material
