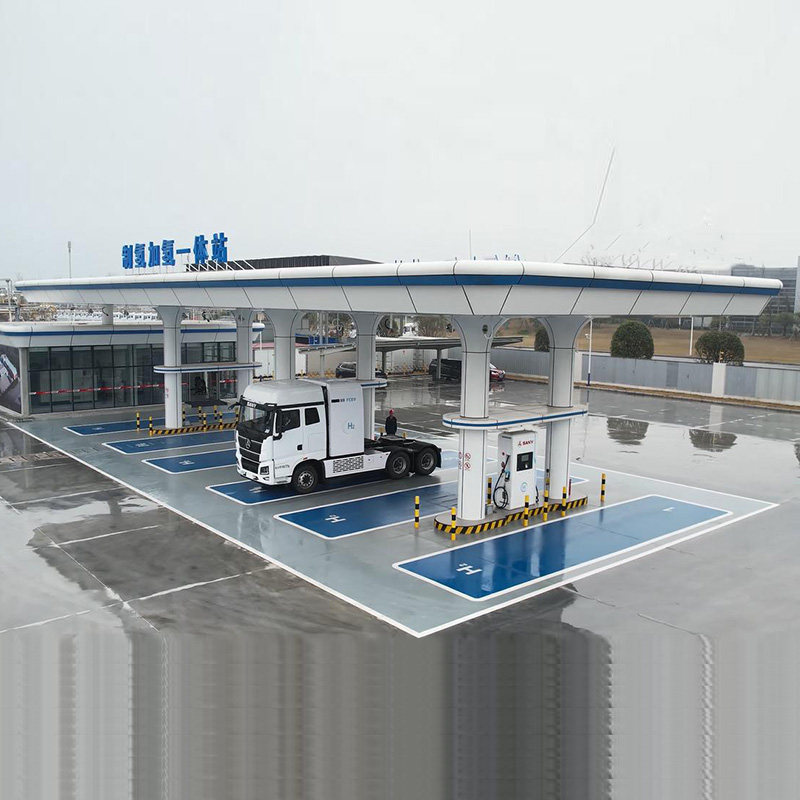

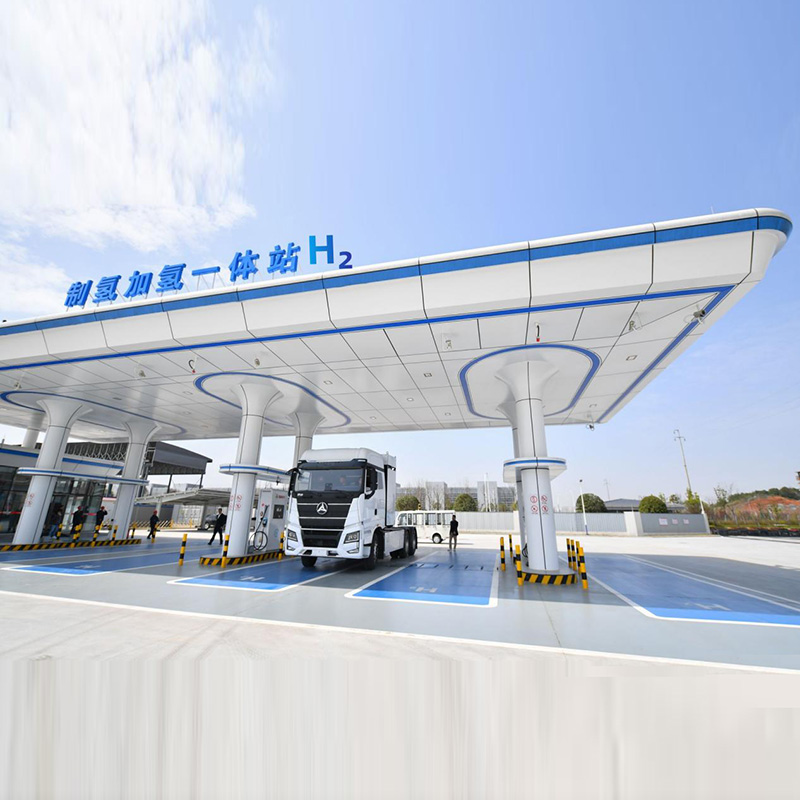

Permanent Type Hydrogen Refueling Station

This standard Permanent type station adopts modular design concept,it is a suitable option for customers with high requirements on functions,safety protections and automation but has no land space concern.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Parameters:
Coverage: about 4,000m2
Construction Period: about 6 months
Daily Hydrogen Filling Capacity: not less than 100kg/200kg/500kg
Hydrogen Compression: rated working pressure 45Mpa/87.5Mpa
Compressor Form: booster pump / diaphragm compressor
Hydrogen Storage: 45Mpa/87.5Mpa
Hydrogen Filling: rated working pressure 35Mpa/70Mpa
Hydrogen Filling Flow Rate: 0.5-3Kg/min
Hydrogen Supply Method: external hydrogen supply /electrolyzed water to produce hydrogen

The main equipment of the external hydrogen supply hydrogen refueling station consists of a hydrogen unload column (unloading hydrogen from a long tube trailer), a hydrogen diaphragm compressor, a hydrogen storage cylinder group, a hydrogen refueling machine, etc.

When the hydrogen refueling station adopts the external hydrogen supply mode as the hydrogen source, that is, the hydrogen in the long pipe trailer is compressed into the high-pressure hydrogen storage cylinder group through the high-pressure compressor through the unload column, a long pipe trailer unload position is set at the hydrogen refueling station. When the unloading is completed, the long tube trailer can be directly off the station.

Our Advantage

1、Equipment Can Be Highly Integrated

2、Advanced System Process

3、Equipment Standardization Design

4、The System Is Highly Intelligent

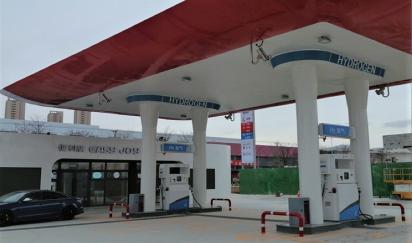

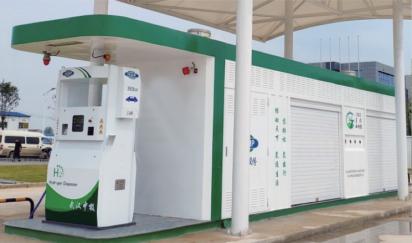

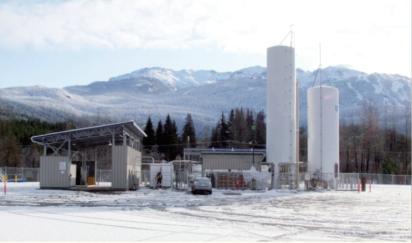

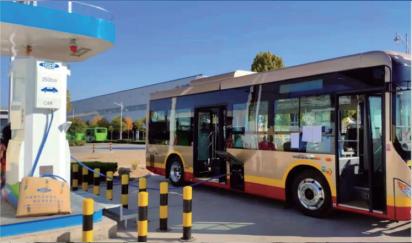

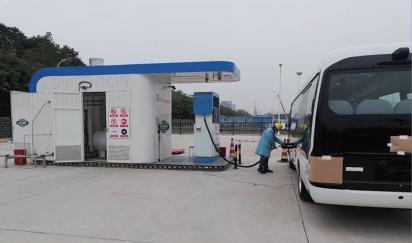

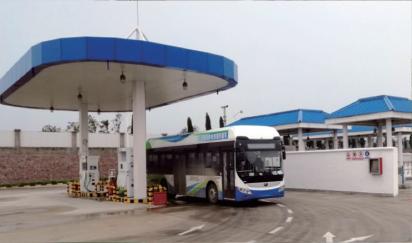

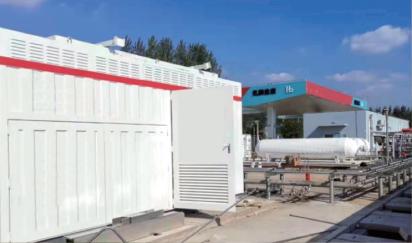

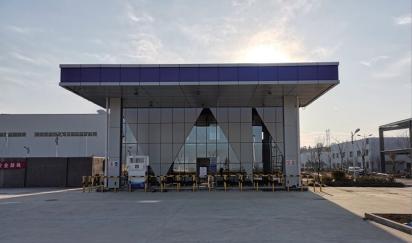

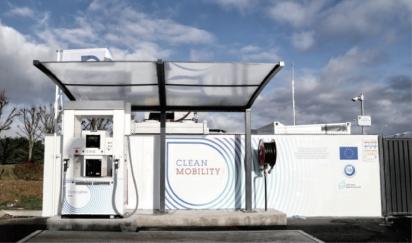

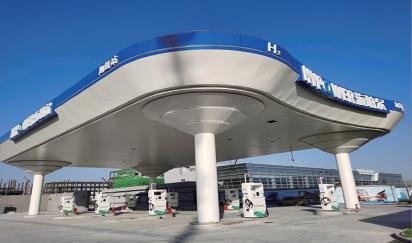

Hydrogen Refuel Station Applications At Home and Abroad
