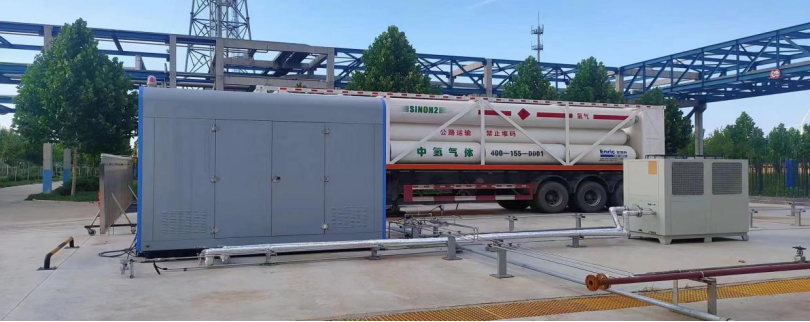

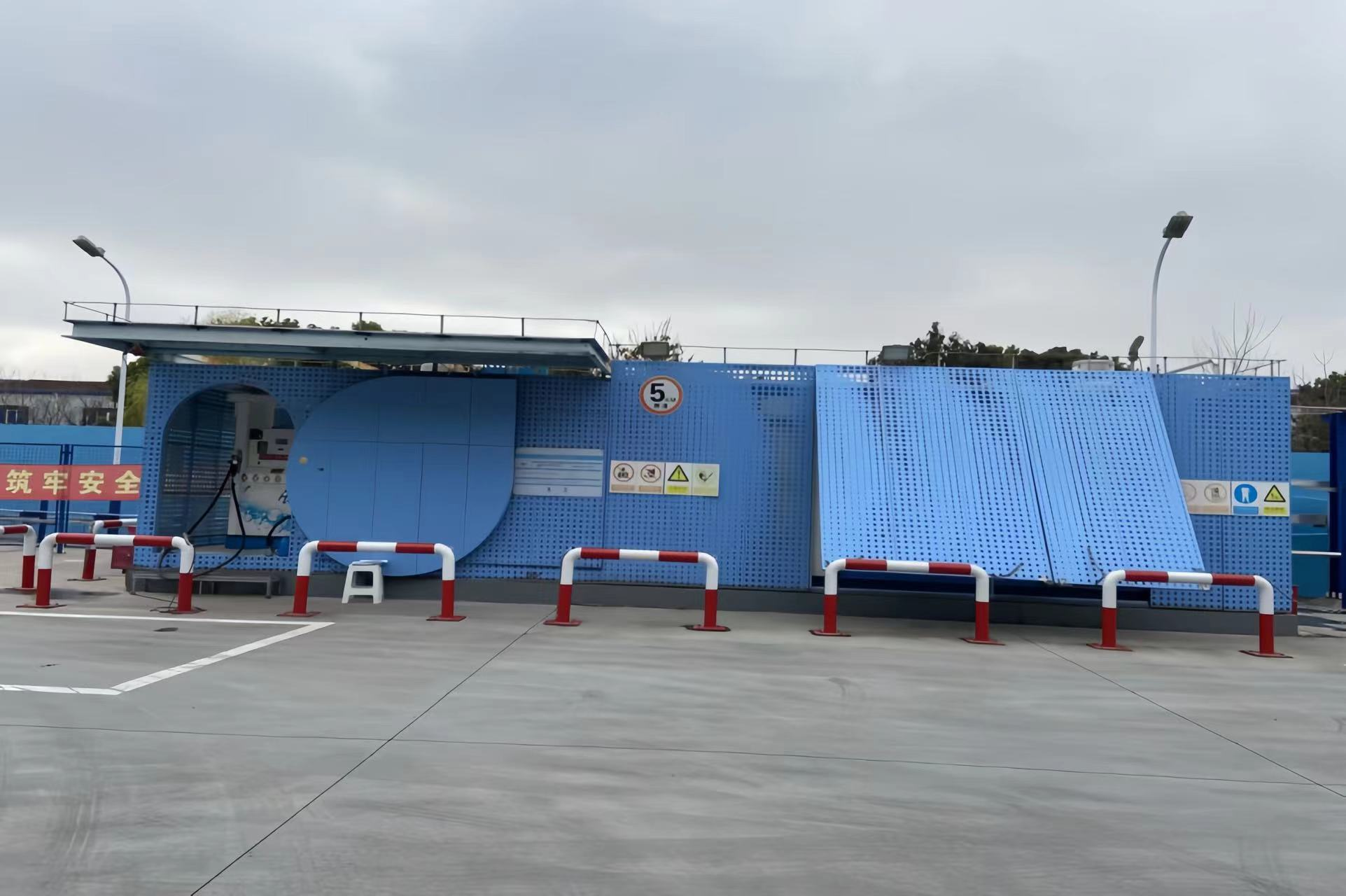

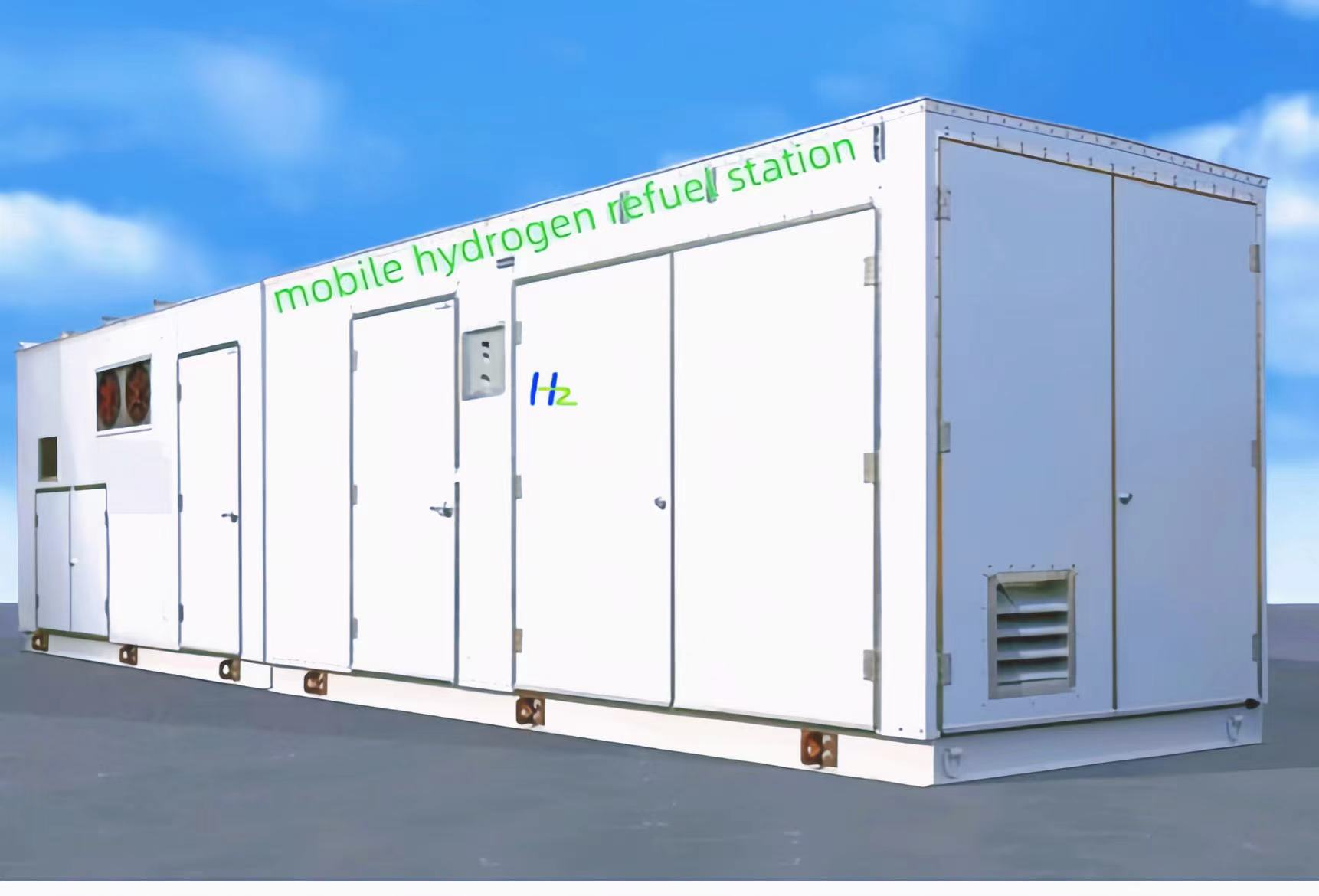

The general (skid-mounted)mobile hydrogen refueling station

Main Parameters:

Daily Hydrogen Filling Capacity: not less than 100kg/200kg/500kg
Hydrogen Compression: rated working pressure 45Mpa/87.5Mpa
Compressor Form: booster pump / diaphragm compressor
Hydrogen Storage: 45Mpa/87.5Mpa
Ambient Temperature: 40-45 ° C
Hydrogen Filling: rated working pressure 35MPa/70MPa
Hydrogen Filling Flow Rate: 0.5~3kg/min;
Filling Accuracy: ±1%
Hydrogen Filling Nozzle: double nozzle single system (with TK16/Tk25 hydrogen filling nozzle)

Main Parts

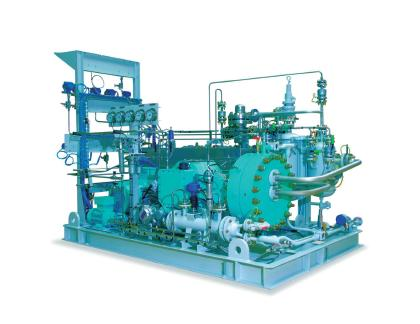

1. Compressor

He compressor skid is a reasonable layout of compressors, valves, pipes, instruments and other components on a stable steel structure skid seat.High integration,good stability,easy to transport.According to the structure and working principle of the compressor,there are two different kinds of diaphragm and hydraulic drive compressor.

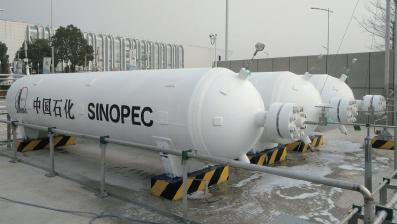

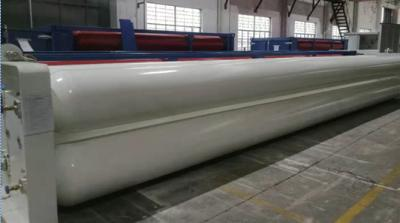

2. Hydrogen Storage

Hydrogen storage devices are an important part of hydrogen refueling stations, usually high-pressure hydrogen gas cylinders and high-pressure.

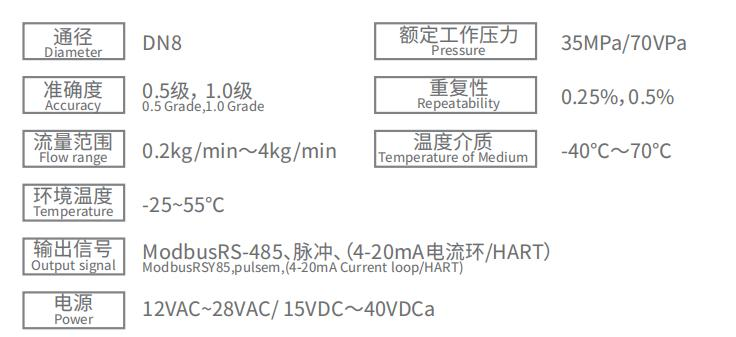

3. Hydrogen mass flowmeter

It is widely used in hydrogen trade measurement fields such as hydrogen dispenser and hydrogen refueling stations. Currently divided into 35MPa and 70MPa (rated working pressure) double hydrogen mass flowmeters.

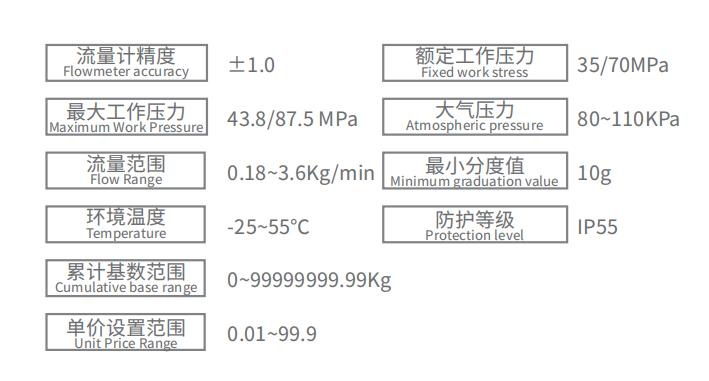

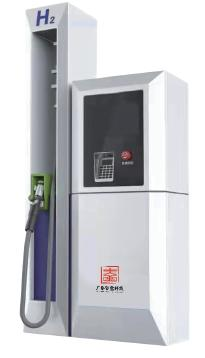

4. Hydrogen Dispenser

The authority classification system meets the requirements of different types of work personnel to obtain and prohibit access to different levels and categories of system data; system access must be restricted and authenticated, encrypted data transmission and interface encrypted authentication access.

Large storage capacity, this machine can store and inquire the most recent 3,000 refilling hydrogen data. If the host computer management system is configured, the data of the past three years can be inquired.

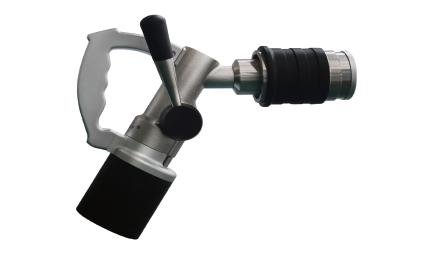

5. Hydrogen Dispenser Gun

The Hydrogen Dispenser gun interface complies with relevant domestic and abroad standards and has good compatibility. The main body is made of high-strength stainless steel, the sealing material is made of special seals and the appearance design conforms to ergonomics
